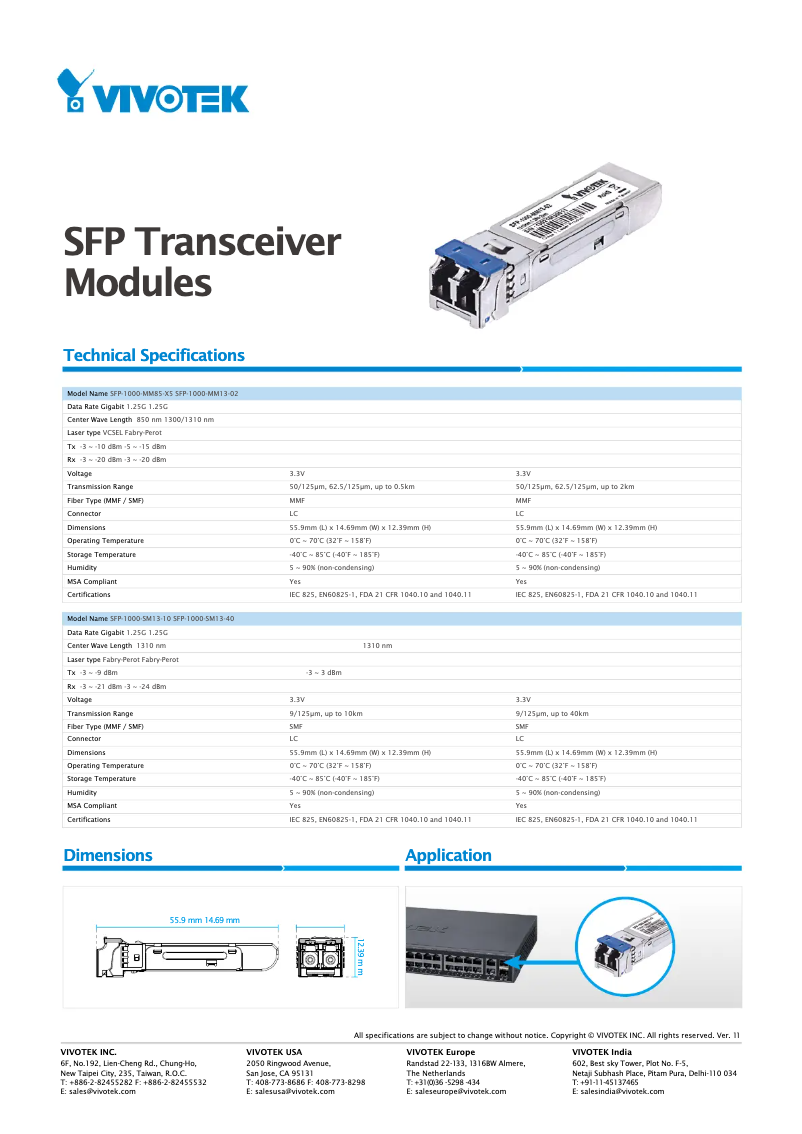

Manual of product SFP-1000-SM13-40
Editorial note
The Vivotek SFP-1000-SM13-40 is an SFP transceiver module that stands out for its high transfer rate of 1250 Mbit/s, ensuring a fast and efficient connection for networking needs. Its maximum transfer distance of 40 km allows for optimal performance even over long distances, making it an ideal choice for various installations. In terms of durability, this product is designed to operate within an extended temperature range of 0 to 70 °C and meets high safety and performance standards, as evidenced by its IEC 825 and RoHS certifications. The LC connector also ensures reliable data transmission, which is essential for modern communication infrastructures. However, a few drawbacks are worth noting. The product may not be compatible with all devices, which could limit its use in certain network environments. Additionally, its price might be considered high compared to other models on the market, which could deter some users. Installation and configuration also require technical skills, which may pose a challenge for less experienced users. In summary, the Vivotek SFP-1000-SM13-40 is a high-performing and robust product, suitable for diverse environments, but it may require consideration regarding its compatibility and the level of skill needed for installation.Score details
Performance
The high transfer rate of 1250 Mbit/s ensures a fast and efficient connection for network needs.
Robustness
Although designed for varied environmental conditions, the product may be sensitive to shocks or improper handling, which could affect its durability.
Usability
The installation and configuration of the product may require specific technical skills, which can be a problem for less experienced users.
Value for money
Its price may be high compared to other models available on the market, which could deter some users.
Features
The maximum transfer distance of 40 km allows for optimal performance even over long distances, which is a major advantage.
Support
Compliance with safety and performance standards with certifications such as IEC 825 and RoHS ensures an environmentally friendly product.
Advantages
Speed of 1250 Mbit/s for fast connection
Maximum distance of 40 km
Operating temperature from 0 to 70 °C
Certified IEC 825 and RoHS
LC connector for reliable transmission
Disadvantages
Limited compatibility with certain devices
Relatively high price compared to others
Installation requires technical skills
Sensitive to shocks and improper handling
Dimensions that may complicate integration
Technical Specifications SFP-1000-SM13-40
General Information
-
ModelSFP-1000-SM13-40
-
Brand
-
Category
-
Type
-
SKU1567998
-
MPN1567998
Representation / realization
-
Auto MDI/MDI-X-
-
Type of interfaceSFP
-
Maximum data transfer rate1250 Mbit/s
-
Fiber optic connectorLC
-
Maximum transfer distance40000 m
-
Wavelength1310 nm
-
SFP transceiver typeFiber optic
-
Supported wire cable diameters9/125 µm
-
Power Tx (max)-3 dBmW
-
Power Tx (max)-3 dBmW
-
Power Rx (min)-24 dBmW
Power
-
Maximum tension3.3 V
Environmental conditions
-
Operating temperature0 - 70 °C
-
Temperature out of operation-40 - 85 °C
-
Relative humidity rate (storage)5 - 90 %
-
Relative humidity rate (storage)5 - 90 %
Weight and dimensions
-
Width55.9 mm
-
Depth14.69 mm
-
Height12.39 mm
Sustainability
-
Sustainability certificatesRoHS
Certificate
-
CertificationIEC 825
-
EN60825-1
-
FDA 21 CFR 1040.10
-
1040.11
Frequently Asked Questions
What certifications does the Vivotek SFP-1000-SM13-40 have?
What is the height of the Vivotek SFP-1000-SM13-40?
What is the width of the Vivotek SFP-1000-SM13-40?
What is the depth of the Vivotek SFP-1000-SM13-40?
Is the manual for the Vivotek SFP-1000-SM13-40 available in French?
Similar products
More product categories from brand Vivotek
More product types from brand Vivotek
Presentation of product SFP-1000-SM13-40 specifications from brand Vivotek
General Information
The Vivotek SFP-1000-SM13-40 is a model from the Vivotek brand, renowned for its commitment to quality and innovation in the field of network connectivity. This product is designed to deliver superior performance, facilitating a smooth user experience. Its EAN code, 4712123674919, allows for precise identification in distribution systems.
Representation / Implementation
This module uses an SFP interface, which ensures a fast and efficient connection with other devices. With a maximum transfer rate of 1250 Mbit/s, the Vivotek SFP-1000-SM13-40 meets the speed requirements of modern networks. Its LC type fiber optic connector is essential for ensuring reliable data transmission. Additionally, it integrates the Auto MDI/MDI-X functionality, allowing for automatic detection of network connections for simplified configuration.
Its maximum transfer distance reaches 40 km, making this product suitable for installations requiring long-distance performance. The 1310 nm wavelength ensures precise digitization, while the type of fiber optic transceiver promotes robust connectivity. The supported fiber cable diameter is 9/125 µm, ensuring optimal data transmission. In terms of power, the Vivotek SFP-1000-SM13-40 displays a Tx Power (min and max) of -3 dBmW and a Rx Power (min) of -24 dBmW, ensuring reliable performance for communications.
Power
The maximum operating voltage is 3.3 V, contributing to energy efficiency and safety during use.
Environmental Conditions
This module is designed to operate within a temperature range of 0 to 70 °C, ensuring reliability in various environments. Outside of its operation, it can withstand extreme temperatures ranging from -40 to 85 °C. Its ability to operate in a relative humidity of 5 to 90 % allows for use in different ambient conditions. Additionally, the humidity level for storage is also 5 to 90 %, which promotes the product's durability.
Weight and Dimensions
The dimensions of the Vivotek SFP-1000-SM13-40 are suitable for easy integration into existing systems: its width is 55.9 mm, its depth is 14.69 mm, and its height is 12.39 mm.
Durability
The Vivotek SFP-1000-SM13-40 is certified compliant with RoHS standards, attesting to its adherence to environmental and durability requirements.
Certificate
This product is also certified according to IEC 825, EN60825-1, and FDA 21 CFR 1040.10, 1040.11 standards, ensuring its compliance with safety and performance standards.
