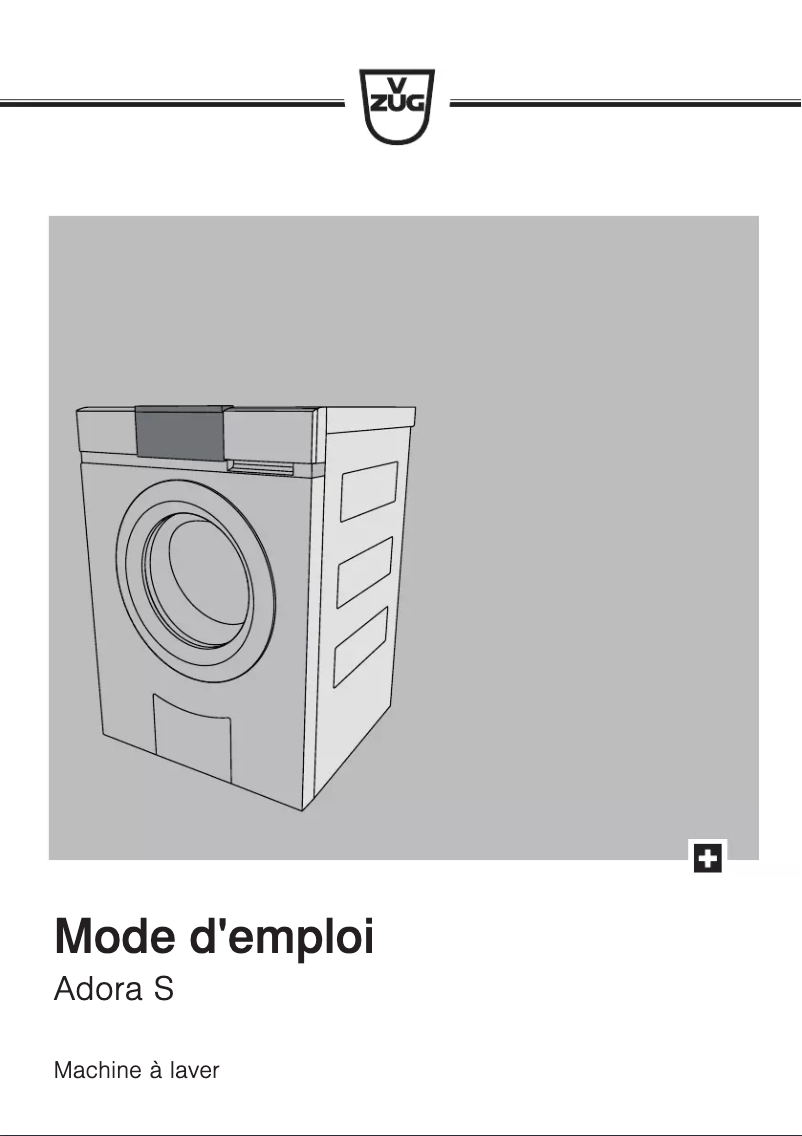

Manual of product WAAS3Mr
Editorial note
The V-Zug WAAS3Mr stands out with its modern and integrated design, which not only optimizes the aesthetics of your space but also facilitates its use with an intuitive touchscreen. With a drum capacity of 60 L, this washing machine is ideal for handling large amounts of laundry, thus saving time during washes. Additionally, it is equipped with the AquaStop function, providing effective protection against water leaks, and boasts an excellent energy class A+++, ensuring quality washing performance while minimizing energy consumption. However, some points may pose issues. The lack of a load balancing system can lead to uneven spin cycles, affecting wash quality. Furthermore, the maximum washing cycle duration of up to 220 minutes may seem long for those seeking quick solutions. Moreover, although the noise level in washing mode is relatively low, the noise during spinning can be disturbing, especially in open living spaces. The weight of 64 kg can also complicate installation, particularly in tight spaces, and the 8 kg capacity may not be sufficient for large families. Overall, the V-Zug WAAS3Mr scores well in various criteria, including user experience, design, and value for money. However, improvements are desirable regarding installation support and noise management. This washing machine is therefore primarily aimed at those who prioritize aesthetics and energy performance while being aware of its limitations in terms of capacity and noise.Score details
User experience
The user experience is enhanced by an intuitive touch control and features like delayed start, making daily use easier.
Performance
Washing performance is generally good, but the lack of a load balancing system can lead to uneven spin cycles, which may affect overall quality.
Design
The integrated and modern design of the V-Zug WAAS3Mr is aesthetically pleasing and optimizes space usage.
Value for money
With an energy class of A+++ and safety features like AquaStop, the value for money is good, although the heavy weight may complicate installation.
Usability
The 60 L drum size and 8 kg capacity are ideal for efficient washes, but may be insufficient for large families.
Support
The 44-page user manual is available, but users may need additional support for installation issues related to the 64 kg weight.
Documentation
The provided documentation is comprehensive but could be improved with tips on installation and managing noise disturbances during spinning.
Advantages
Modern and integrated design
60 L drum for large loads
AquaStop leak protection
Intuitive touch control
Energy class A+++
Delayed start up to 24 hours
Disadvantages
No load balancing system.
Washing cycle up to 220 minutes.
Spin noise reaching 75 dB.
Weight of 64 kg, difficult to move.
8 kg capacity insufficient for families.
Technical Specifications WAAS3Mr
General Information
-
ModelWAAS3MR
-
Brand
-
Category
-
Type
-
SKU800162
-
MPN800162
Design
-
Device placementFree pose
-
Loading typeFront load
-
Product colorWhite
-
Reversible doorsYes
-
Cable length1.8 m
-
Hinge location of doorRight
-
Door opening angle180 °
-
Drum volume60 L
-
Length of the supply pipe1.25 m
-
Length of the drainage pipe3 m
-
Water fillingcold
-
Order typeTouch
-
Reversible doorsYes
Ergonomics
-
Indication of remaining timeYes
-
Indication of remaining timeYes
Representation / realization
-
Number of washing programs-
-
Load balancing systemNo
-
Nominal capacity8 kg
-
Maximum spin speed1500 rpm
-
Spin efficiency classA
-
Noise level (washing)49 dB
-
Cycle duration (max)220 min
-
Half-loadYes
-
Half-loadYes
-
Delayed departure24 h
-
Noise level (spin)75 dB
-
Half-loadYes
-
Minimum spin speed400 rpm
-
Washing programsHygiene/anti-allergy, Cold, Easy care, Eco, Hand/wool, Quick, Steam, White
-
Residual moisture44 %
Power
-
Energy efficiency class (old)A+++
-
Energy consumption per wash0.95 kWh
-
Current10 A
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Electricity consumption (stop)0.07 W
-
Connected charge2300 W
Other features
-
Annual energy consumption175 kWh
-
Annual water consumption9900 L
Weight and dimensions
-
Width595 mm
-
Depth597 mm
-
Height850 mm
-
Weight64000 g
-
Depth when the door is open1059 mm
Frequently Asked Questions
What is the recommended temperature for washing my clothes?
Is it necessary to use a descaling product for my washing machine?
How can I prevent bad odors in my washing machine?
What is the weight of the V-Zug WAAS3Mr model?
What is the height of the V-Zug WAAS3Mr appliance?
What is the width of the V-Zug WAAS3Mr?
What is the depth of the V-Zug WAAS3Mr?
Is the manual for the V-Zug WAAS3Mr available in French?
Similar products
More product categories from brand V-Zug
More product types from brand V-Zug
Presentation of product WAAS3Mr specifications from brand V-Zug
General Information
The V-Zug WAAS3Mr is an innovative washing machine model from the V-Zug brand, known for its excellence and cutting-edge technology in the home appliance sector. This model, identified by the code WAAS3Mr | 1101102002, is designed to provide optimal washing performance, thereby enhancing the user experience. The EAN code 7630029404447 allows for precise product identification across distribution networks.
Design
The integrated design of the V-Zug WAAS3Mr promotes optimal use while preserving the aesthetics of your interior. Featuring a front-loading design, this machine is built to maximize available space. Its white finish gives it a modern and elegant appearance. The integrated screen makes navigating through the various options and programs easy. With a power cord of 1.8 m, this machine offers installation flexibility. The door opens to 180°, ensuring easy access to the generously sized drum with a capacity of 60 L, ideal for handling large amounts of laundry. The inlet and drainage hoses measure 1.25 m and 3 m, respectively, ensuring an installation suited to your needs. The water filling is cold, and the touch control system makes daily use intuitive. The reversible doors also provide appreciated installation flexibility.
Ergonomics
Safety is a priority with the V-Zug WAAS3Mr, which is equipped with a child safety system to prevent accidents. Additionally, the remaining time indicator allows for better management of washing cycles, thus providing an optimized user experience.
Performance
This model does not have a load balancing system, which could affect spinning performance on certain loads. Its nominal capacity of 8 kg makes it suitable for the needs of an average household. With a spin speed of up to 1500 rpm, it ensures well-spun laundry, thereby reducing drying time. Rated A for spin efficiency, it offers good performance. The noise level during washing is 49 dB, ensuring discreet operation, while the spin noise can reach 75 dB, which may be disruptive in certain environments. The maximum duration of a washing cycle is 220 minutes, which some users may find long. The machine offers an AquaStop function to prevent water leaks and a delayed start of up to 24 hours, allowing you to schedule washing according to your availability. Half-load is also possible for efficient use.
Power
In terms of energy efficiency, the V-Zug WAAS3Mr is rated A+++ and consumes 0.95 kWh per washing cycle. The required current is 10 A, with an input voltage of 230 V and a frequency of 50 Hz. The power consumption in standby mode is low, at 0.07 W, and the connected load is 2300 W, ensuring optimal performance.
Other Features
The annual energy consumption amounts to 175 kWh, while the annual water consumption is 9900 L, allowing for an assessment of its environmental impact.
Weight and Dimensions
The dimensions of the V-Zug WAAS3Mr are: a width of 595 mm, a depth of 597 mm, and a height of 850 mm, facilitating its integration into various spaces. Its weight of 64 kg may make transport and installation a bit more challenging, especially in confined areas. When the door is open, the total depth reaches 1059 mm, which is important to consider for your space layout.
