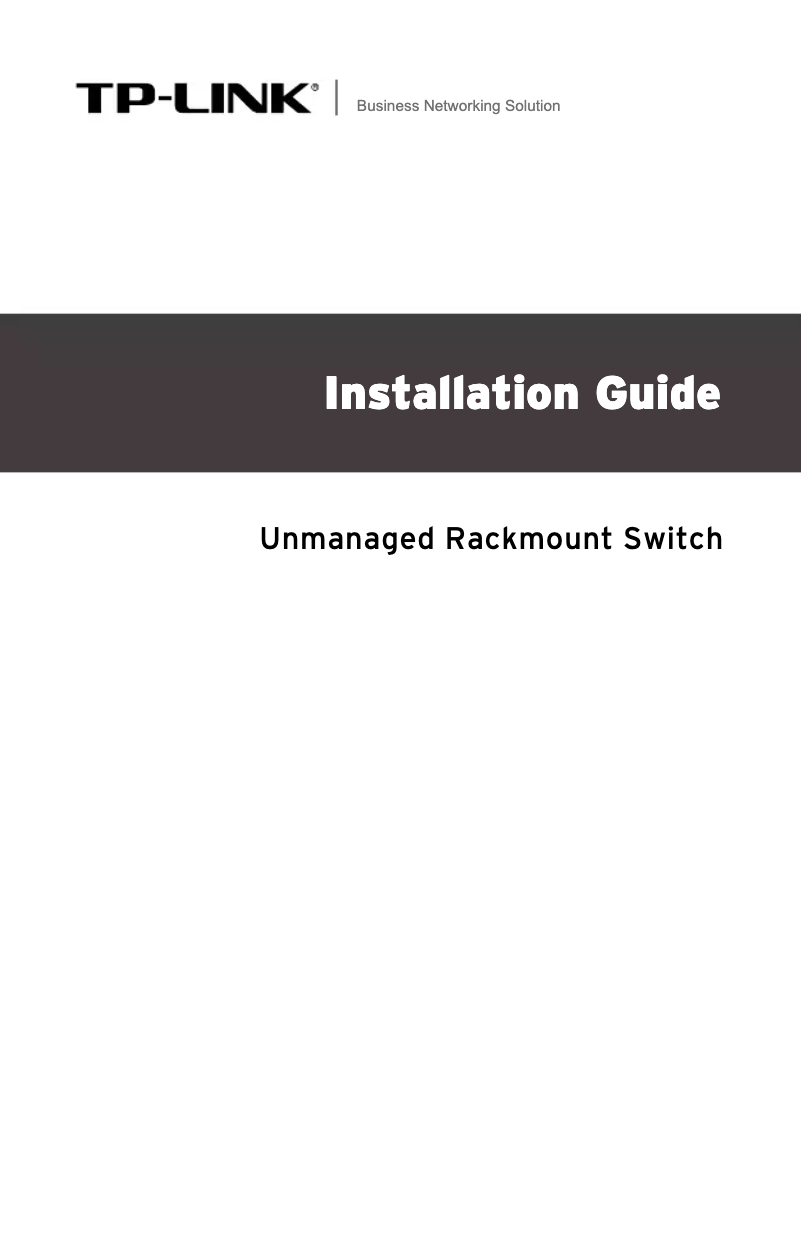

Manuals of product TL-SG1008P
Technical Specifications TL-SG1008P
General Information
-
ModelTL-SG1008P
-
Brand
-
Category
-
Type
-
SKU1132167
-
MPN1132167
Management features
-
Switch typeManaged
-
Quality of Service (QoS)No
Connectivity
-
Number of ports .Gigabit Ethernet (copper)8
-
Basic switching RJ-45 Ethernet port typeGigabit Ethernet (10/100/1000)
-
Number of ports .Gigabit Ethernet (copper)8
-
Power connectorDC-in jack
Network
-
Copper Ethernet cabling technology1000BASE-T
-
Network standards100BASE-TX
-
Automatic update of the MAC address10BASE-T
-
Automatic update of the MAC addressIEEE 802.1p
-
Support 10GIEEE 802.3
-
Automatic update of the MAC addressIEEE 802.3ab
-
Automatic update of the MAC addressIEEE 802.3af
-
Automatic update of the MAC addressIEEE 802.3i
-
Supported cable typesIEEE 802.3u
-
IEEE 802.3x
-
Yes
-
Yes
-
No
-
Yes
-
Yes
-
Yes
-
Cat3
-
Cat4
-
Cat5
-
Cat5e
Data transmission
-
MAC Directory4000 entries
-
Switching capacity16 Gbit/s
-
Support for jumbo framesYes
-
Transfer rate11.904 Mpps
-
Support for jumbo framesYes
-
Giant frames16000
Power
-
Number of power supplies1
-
Input current1.31 A
-
Power supply includedYes
-
Power supplyDC/PoE
-
Consumption (max)75 W
-
AC input voltage100 - 240 V
-
AC input frequency50/60 Hz
-
DC input voltage53.5 V
Design
-
StackableNo
-
StackableNo
-
Product colorGray
-
IndicatorsYes
-
Material of the case/bodyMetal
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 90 %
-
Thermal dissipation225.75 BTU/h
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power over Ethernet (PoE) Number of ports4
-
Total Power over Ethernet (PoE) Budget64 W
Packaging contents
-
User GuideYes
-
Cables includedSector
Weight and dimensions
-
Width171 mm
-
Depth98 mm
-
Height27 mm
Packaging information
-
Type of packagingBox
-
Package height68 mm
-
Package depth280 mm
-
Package width223 mm
-
Package weight900 g
Representation / realization
-
Maximum cable length100 m
-
Without fanYes
Sustainability
-
Compliance with sustainabilityYes
-
Sustainability certificatesCE, Federal Communications Commission (FCC), RoHS
Security
-
IGMP FilteringYes
Similar products
More product categories from brand TP-Link
Other TP-Link
Phones TP-Link
Interior TP-Link
Software TP-Link
Audio TP-Link
More product types from brand TP-Link
Presentation of product TL-SG1008P specifications from brand TP-Link
Generalities
The brand of the product TP-Link TL-SG1008P is TP-Link. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product TP-Link TL-SG1008P is 0115971150279, 0845973021160, 5053959161129, 5054484474272, 5055383466986, 6935364021160, 6935364021177. This code allows for the unique identification of the product in the distribution system. The product model TP-Link TL-SG1008P is TL-SG1008P | TL-SG1008P V3. This model ensures optimal performance and an enhanced user experience.
Management features
The switch type of the product TP-Link TL-SG1008P is Géré. This type of switch allows for advanced management and optimal control of the network. Does the product TP-Link TL-SG1008P have Quality of Service (QoS)? Non. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Connectivity
The number of basic switching RJ-45 Ethernet ports of the product TP-Link TL-SG1008P is 8. These ports enable efficient and fast network connectivity. The power connector of the product TP-Link TL-SG1008P contains DC-in jack. This connector is essential for ensuring reliable and efficient power supply. The basic switching RJ-45 Ethernet port type of the product TP-Link TL-SG1008P is Gigabit Ethernet (10/100/1000). This port allows for a fast and reliable connection for your network devices. The number of Gigabit Ethernet (copper) ports of the product TP-Link TL-SG1008P is 8. These ports provide fast and reliable connectivity for your devices.
Network
The copper Ethernet wiring of the product TP-Link TL-SG1008P contains 1000BASE-T, 100BASE-TX, 10BASE-T. This type of technology enables fast and reliable network connections, suitable for various environments. Does the product TP-Link TL-SG1008P have Auto MDI/MDI-X? Oui. This specification allows for automatic detection of network connections, thus facilitating use and configuration. Does the product TP-Link TL-SG1008P have Flow Control Assistance? Oui. This feature allows for efficient management of data flows and optimization of system performance. The network standards of the product TP-Link TL-SG1008P are IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. Does the product TP-Link TL-SG1008P have 10G support? No. This product does not support the 10G support standard, which may affect its performance in high-speed environments. Does the product TP-Link TL-SG1008P have automatic negotiation? Oui. This feature allows for optimizing exchanges by automating the negotiation process. Does the product TP-Link TL-SG1008P have supported MAC address machine learning? Oui. This feature allows for optimized management of network connections. The type of cables supported by the product TP-Link TL-SG1008P is Cat3, Cat4, Cat5, Cat5e. These cables ensure optimal performance for your network connections. Does the product TP-Link TL-SG1008P have an automatic MAC address update? Oui. This feature ensures smooth and efficient management of network connections.
Data transmission
The MAC directory of the product TP-Link TL-SG1008P contains 4000 entrées. This directory allows for precise identification of devices on the network. The switching capacity of the product TP-Link TL-SG1008P is 16 Gbit/s. This specification ensures efficient data transmission. The transfer rate of the product TP-Link TL-SG1008P is 11.904 Mpps. This high rate ensures optimal performance for your networking needs. Does the product TP-Link TL-SG1008P have Recording-and-rebroadcasting? Oui. This feature allows for efficient data capture and retransmission. The product TP-Link TL-SG1008P supports jumbo frames. This feature allows for optimizing data transfer over the network, thereby improving overall performance. The product TP-Link TL-SG1008P contains 15000 giant frames. These giant frames allow for efficient data management within the network.
Design
Does the product TP-Link TL-SG1008P have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. The color of the product TP-Link TL-SG1008P is Gris. This shade gives it a modern and elegant look. Does the product TP-Link TL-SG1008P have indicators? Oui. These indicators allow you to visualize the operating status of the device. Is the product TP-Link TL-SG1008P stackable? No. This product cannot be stacked. The material of the product case TP-Link TL-SG1008P is Métal. This material ensures both durability and elegance.
Environmental conditions
The non-operating temperature of the product TP-Link TL-SG1008P is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product TP-Link TL-SG1008P is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product TP-Link TL-SG1008P has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product TP-Link TL-SG1008P is 5 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The thermal dissipation of the product TP-Link TL-SG1008P is 225.75 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device.
PoE (Power over Ethernet)
Does the TP-Link TL-SG1008P have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The Total Power over Ethernet (PoE) budget of the product TP-Link TL-SG1008P is 64 W. This budget allows for the efficient powering of multiple devices through a single network cable. The number of Power over Ethernet (PoE) ports of the product TP-Link TL-SG1008P is 4. This number of ports allows for efficient and simplified connectivity to power your network devices.
Power
The number of power supplies for the product TP-Link TL-SG1008P is 1. This specification ensures a reliable power supply that meets the product's needs. The power supply of the product TP-Link TL-SG1008P is DC/PoE. This power supply ensures optimal autonomy for prolonged use. Does the TP-Link TL-SG1008P come with a power supply included? Oui. This ensures that you have everything you need for immediate use. The input current of the product TP-Link TL-SG1008P is 1.31 A. This input current ensures optimal performance and increased energy efficiency. The maximum consumption of the product TP-Link TL-SG1008P is 75 W. This specification allows for the assessment of the energy efficiency of the device. The AC input voltage of the TP-Link TL-SG1008P is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product TP-Link TL-SG1008P is 50/60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The DC input voltage of the product TP-Link TL-SG1008P is 53.5 V. This DC input voltage ensures optimal performance and compatibility with various devices.
Packaging contents
Does the product TP-Link TL-SG1008P have a User Guide? Oui. This guide will allow you to fully enjoy all the features of the product. The included cable of the product TP-Link TL-SG1008P contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Weight and dimensions
The width of the product TP-Link TL-SG1008P is 171 mm. This dimension is essential to ensure optimal integration into your space. The height of the product TP-Link TL-SG1008P is 27 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product TP-Link TL-SG1008P is 98 mm. This dimension allows for optimal integration into your space.
Packaging information
The height of the package of the product TP-Link TL-SG1008P is 68 mm. This dimension is essential to ensure optimal transport and storage. The packaging type of the product TP-Link TL-SG1008P is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The depth of the product package TP-Link TL-SG1008P is 280 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the TP-Link TL-SG1008P package is 900 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product TP-Link TL-SG1008P is 223 mm. This dimension is essential to ensure optimal transport and storage.
Sustainability
Does the product TP-Link TL-SG1008P comply with sustainability? Oui. This product meets established sustainability standards, thereby ensuring a reduced environmental impact. The product TP-Link TL-SG1008P has Sustainability Certificates: CE, Federal Communications Commission (FCC), RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Representation / realization
The maximum length of the TP-Link TL-SG1008P cable is 100 m. This feature allows for flexible use in various environments. Does the product TP-Link TL-SG1008P have a fan? No. This product operates without a fan, ensuring silent operation and optimal use in various environments.
Security
Does the product TP-Link TL-SG1008P have IGMP Snooping? Oui. This feature allows for efficient management of multicast traffic, thereby enhancing network security and performance.
