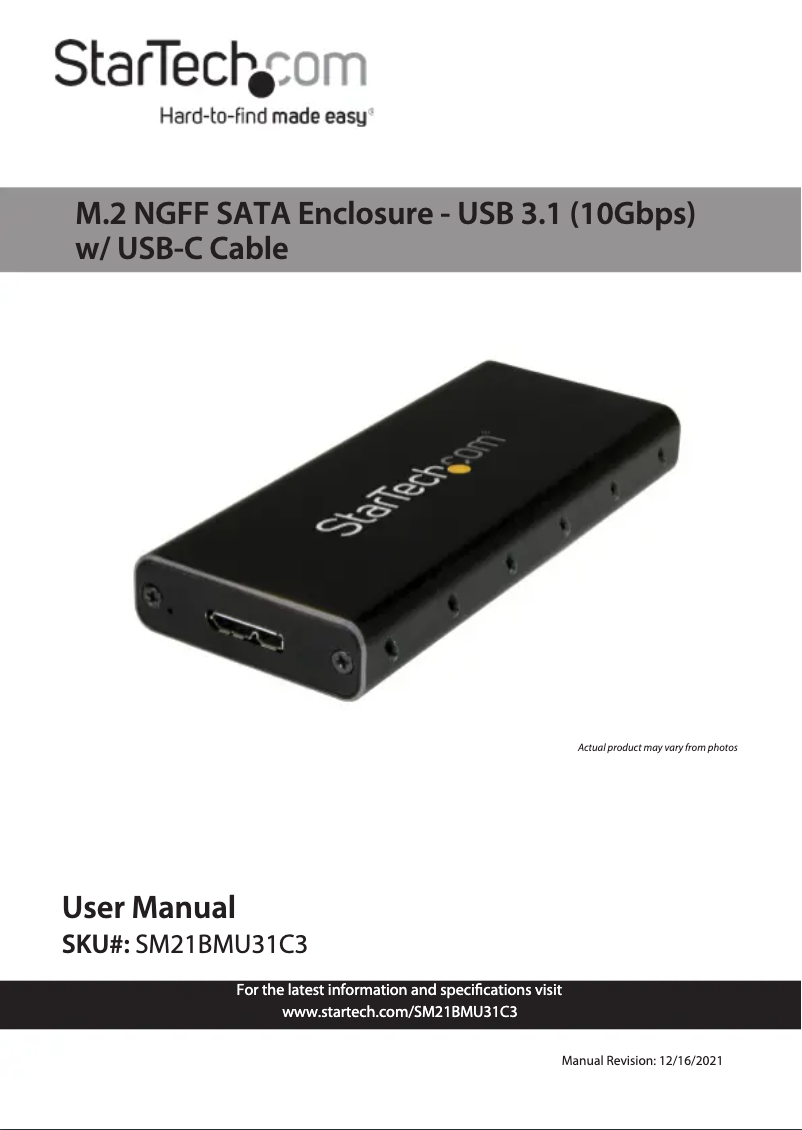

Manual of product SM21BMU31C3
Editorial note
The StarTech.com SM21BMU31C3 is a product that stands out for its USB 3.2 Gen 2 connectivity, allowing for fast data transfers of up to 10 Gbit/s. This feature ensures optimal efficiency when used with various devices. Additionally, its compact and lightweight design (61 g) makes it easy to transport and integrate into different workspaces. Made of aluminum, it combines durability with modern aesthetics, while offering a Plug and Play system for quick and hassle-free installation. However, the product also has some drawbacks. With only one USB port, connectivity is limited, making it difficult to connect multiple devices simultaneously. Furthermore, the lack of an integrated USB cable could be a disadvantage for some users who will need to purchase a separate cable. Although lightweight, its weight may seem cumbersome for those seeking an ultra-portable solution. The limited compatibility with 80 mm M.2 storage units also restricts the options available for some users, while the aluminum design, although sleek, may be prone to scratches. In terms of performance, the user experience is generally positive, supported by the Plug and Play functionality. Fast data transfers, modern design, and practical construction contribute to good value for money, although users should consider the potential cost of a separate USB cable. Ultimately, the StarTech.com SM21BMU31C3 is a solid choice for those looking for an efficient and durable storage solution, provided they take its limitations into account.Score details
User experience
The user experience is overall positive thanks to the Plug and Play feature, allowing for quick and hassle-free installation.
Performance
Data transfers are fast due to the USB 3.2 Gen 2 connectivity, with a transfer rate reaching 10 Gbit/s.
Design
The aluminum design is modern and sleek, although it is prone to scratches, which could affect its appearance over time.
Usability
The compact and lightweight design makes it easy to transport, but the lack of an integrated USB cable and the limited number of ports may be drawbacks for some users.
Features
The M.2 storage support offers flexibility, but the compatibility limited to 80 mm drives restricts options for some users.
Value for money
The product offers good value for money, but users should consider the potential cost of a separate USB cable.
Advantages
Transfers up to 10 Gbit/s
Compact and lightweight (61 g)
Durable elegant aluminum
Fast Plug and Play installation
M.2 compatibility for flexibility
Disadvantages
Only one USB port available
USB cable not included
Weight of 61 g, slightly bulky
Compatibility limited to 80 mm M.2
Aluminum design prone to scratches
Technical Specifications SM21BMU31C3
General Information
-
ModelSM21BMU31C3
-
Brand
-
Category
-
Type
-
SKU2035031
-
MPN2035031
Storage support
-
Number of supported storage units1
-
Supported storage reader interfacesM.2
-
Number of installed storage readers0
-
Storage unit sizeM.2 "
-
Supported storage reader lengths80 mm
Connectivity
-
USB ConnectivityYes
-
USB Version3.2 Gen 2 (3.1 Gen 2)
-
USB connectorMicro-USB B
-
Type of USB connectorFemale
-
Number of USB ports1
-
Integrated USB cableNo
Representation / realization
-
Component gameASMedia - ASM1351
-
Data transfer rate10 Gbit/s
-
Mean time between failures1000000 h
-
Plug and PlayYes
-
Plug and PlayYes
Design
-
CertificationCE
-
Product typeFCC
-
Product colorTAA
-
IndicatorsREACH
-
MaterialSSD enclosure
-
Black, silver
-
Activity, Power
-
Aluminum
Technical details
-
Sustainability certificatesRoHS
Power
-
Power supply typeUSB
Environmental conditions
-
Operating relative humidity (H-H)10 - 90 %
-
Relative humidity rate (storage)5 - 95 %
-
Operating temperature0 - 40 °C
-
Temperature out of operation-10 - 65 °C
Weight and dimensions
-
Weight61 g
-
Depth99 mm
-
Height13 mm
-
Package height32 mm
-
Package depth131 mm
-
Package width161 mm
-
Package weight139 g
-
Width42 mm
Packaging contents
-
Cables includedUSB
-
Screwdriver includedYes
-
Screwdriver includedYes
-
Screwdriver includedYes
Logistics data
-
Harmonized System Code84733080
Frequently Asked Questions
What is the weight of the StarTech.com SM21BMU31C3 model?
What certifications does the StarTech.com SM21BMU31C3 have?
What is the height of the StarTech.com SM21BMU31C3?
What are the width dimensions of the StarTech.com SM21BMU31C3?
What is the depth of the StarTech.com SM21BMU31C3?
What type of USB connection is present on the StarTech.com SM21BMU31C3?
Is the manual for the StarTech.com SM21BMU31C3 available in French?
Similar products
More product categories from brand StarTech.com
More product types from brand StarTech.com
Presentation of product SM21BMU31C3 specifications from brand StarTech.com
General Information
The StarTech.com SM21BMU31C3 is a product from the renowned brand StarTech.com, known for its expertise and innovation in the field of technology accessories. This model, identified by the code SM21BMU31C3, is designed to deliver optimal performance, thereby enhancing the user experience. Its EAN code, 0065030864435, allows for easy identification in distribution systems.
Storage Support
The SM21BMU31C3 supports a storage unit, optimizing data management. This model is compatible with M.2 storage interfaces, ensuring increased flexibility and compatibility with various devices. Although there are no pre-installed storage drives, the product supports lengths of 80 mm for M.2 units, allowing customization according to specific storage needs.
Connectivity
This product features USB 3.2 Gen 2 connectivity, offering data transfer speeds of up to 10 Gbit/s. The Micro-USB B connector is female, ensuring a quick and stable connection. While it is equipped with a single USB port, this choice may be a drawback for those wishing to connect multiple devices simultaneously. It is important to note that the SM21BMU31C3 does not include a built-in USB cable, meaning users will need to purchase a cable separately.
Representation / Performance
This model incorporates an ASMedia - ASM1351 chipset, ensuring high performance and reliability. With a mean time between failures of 1,000,000 hours, this product is designed for prolonged use. It also supports UASP (USB Attached SCSI Protocol), allowing for more efficient data transfer management. The Plug and Play functionality enables quick and hassle-free installation, which is a valuable asset for users.
Design
The SM21BMU31C3 is certified CE, FCC, TAA, and REACH, ensuring compliance with safety and performance standards. Its compact aluminum design, available in black and silver, gives it a modern appearance while ensuring durability against wear. Activity and Power indicators allow users to visualize the operational status of the device.
Technical Details
This product is certified RoHS, which attests to its compliance with environmental and energy efficiency standards.
Power
The SM21BMU31C3 operates with a USB power source, ensuring reliable and efficient performance.
Environmental Conditions
The product operates in a relative humidity of 10 to 90 % and can be stored in a humidity of 5 to 95 %. Its operating temperature range is 0 to 40 °C, while it can withstand non-operating temperatures ranging from -10 to 65 °C, demonstrating its robustness in various environments.
Weight and Dimensions
Weighing 61 g, the SM21BMU31C3 is lightweight and easy to carry. Its dimensions are optimized to fit easily into various workspaces: depth of 99 mm, height of 13 mm, and width of 42 mm. The package weighs 139 g and its dimensions are 32 mm in height, 131 mm in depth, and 161 mm in width, ensuring adequate protection during transport.
Package Contents
The package contents include a power cable to ensure an electrical connection, as well as screws for simplified installation. A quick installation guide is also included, facilitating the installation process. Additionally, a screwdriver is provided to assist with any mounting or repairs.
Logistics Data
The harmonized system code for the SM21BMU31C3 is 84733080, allowing for identification in international trade.
