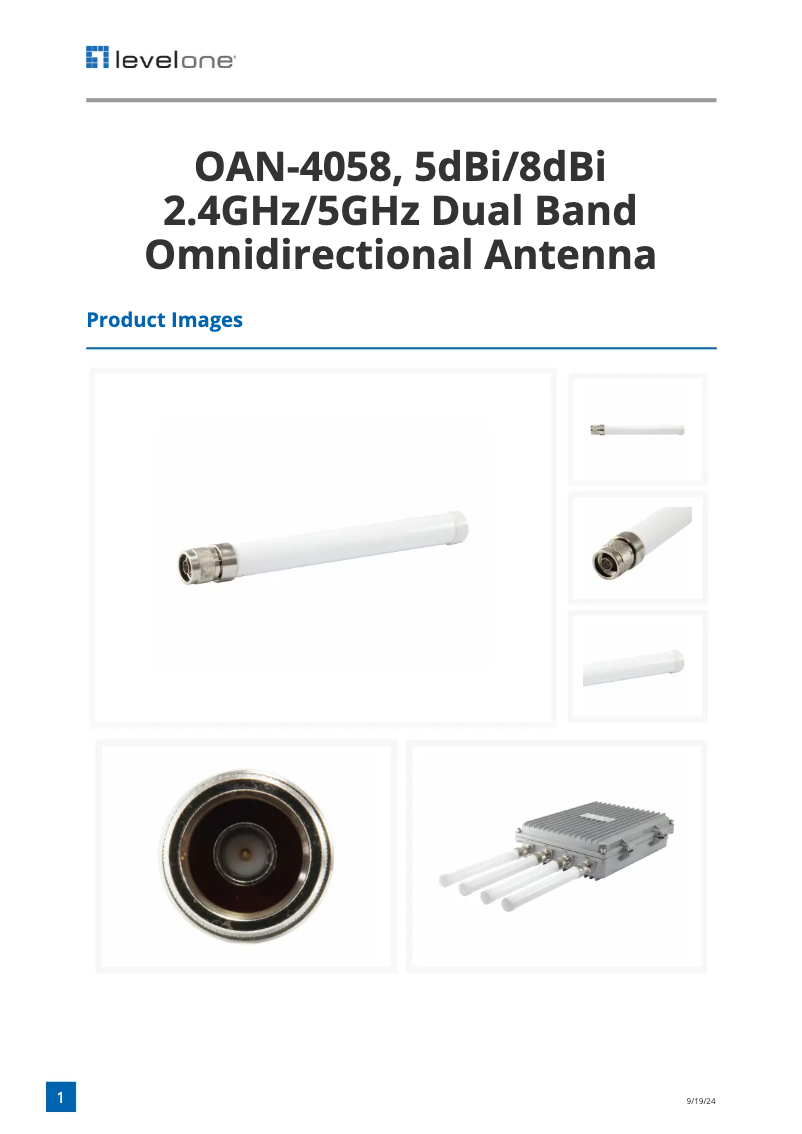

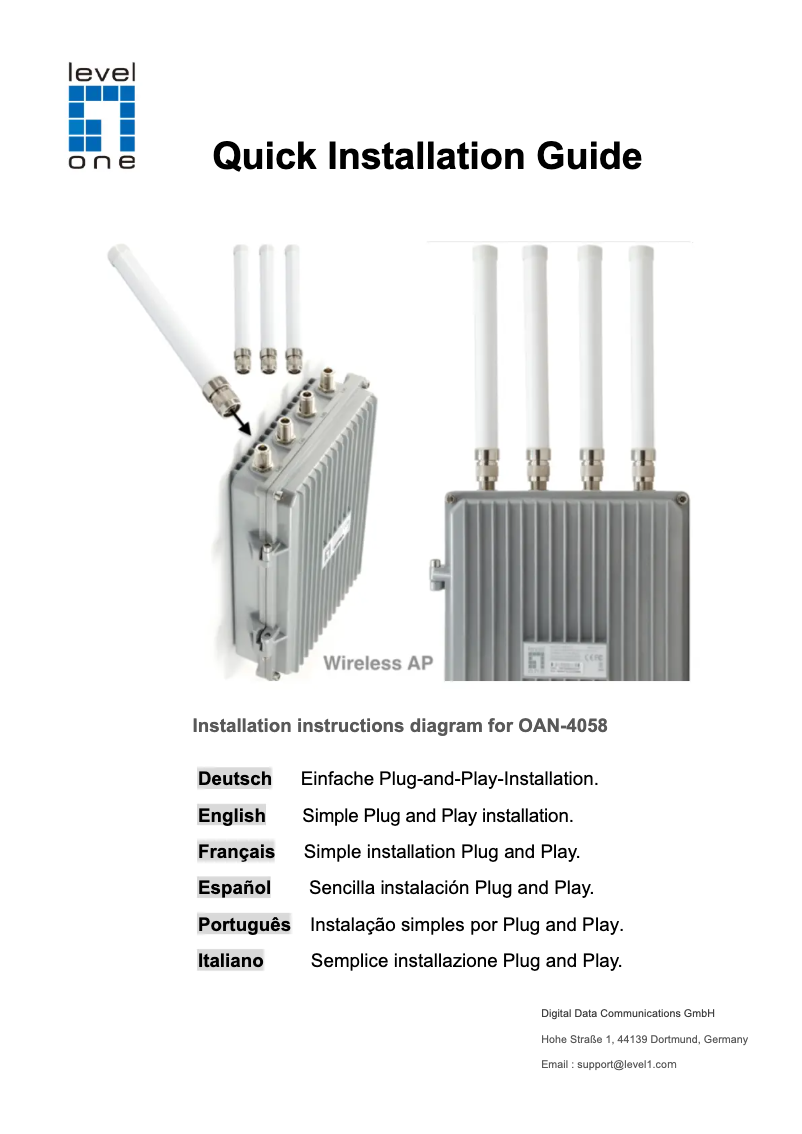

Manuals of product OAN-4058
Technical Specifications OAN-4058
General Information
-
ModelOAN-4058
-
Brand
-
Category
-
Type
-
SKU1573337
-
MPN1573337
Representation / realization
-
Frequency band2.4 - 5 GHz
-
Increase of the antenna (5 GHz)8 dBi
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
-
Increase of the antenna (2.4 GHz)5 dBi
-
Increase of the antenna (5 GHz)8 dBi
-
Impedance50 Ohm
-
Horizontal radius width (5 GHz)360 °
-
Vertical radius width (2.4 GHz)51.7 °
-
Horizontal radius width (5 GHz)360 °
-
Vertical radius width (5 GHz)27.7 °
-
Gain5 / 8 dBi
Features
-
Antenna typeOmnidirectional antenna
-
Antenna connector typeType-N
-
Type of connectorFemale
-
Standing Wave Report2
-
PolarizationVertical polarization
-
Product colorWhite
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Height22 mm
-
Depth203 mm
-
Height22 mm
-
Weight860 g
Packaging information
-
Package width70 mm
-
Package depth60 mm
-
Package height265 mm
-
Package weight192 g
-
Type of packagingBlister
Packaging contents
-
Quantity1 piece(s)
Logistics data
-
Width of the main locker (external)480 mm
-
Length of the main locker (external)560 mm
-
Height of the main locker (external)290 mm
-
Gross weight of the main locker (external)11000 g
-
Main locker volume (external)50 cm³
-
Product by main locker (external)50 piece(s)
-
Country of originTaiwan
-
Harmonized System Code85177100
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product OAN-4058 specifications from brand LevelOne
Generalities
The brand of the product LevelOne OAN-4058 is LevelOne. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product LevelOne OAN-4058 is 4015867205020. This code allows for the unique identification of the product in the distribution system. The product model LevelOne OAN-4058 is OAN-4058 | OAN-4058. This model ensures optimal performance and an enhanced user experience.
Environmental conditions
The operating temperature of the product LevelOne OAN-4058 is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product LevelOne OAN-4058 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Features
The type of antenna connector of the product LevelOne OAN-4058 is Type-N. This connector is essential for ensuring good signal reception. The type of antenna of the product LevelOne OAN-4058 is Antenne omni-directionnelle. This antenna is designed to provide optimal performance in a compact space. The standing wave ratio of the product LevelOne OAN-4058 is 2. This ratio is essential for assessing the performance and efficiency of the device. The gender of the connector of the product LevelOne OAN-4058 is Femelle. This detail is essential to ensure compatibility with other equipment. The product LevelOne OAN-4058 has a vertical polarization. This feature enhances visual clarity by reducing unwanted glare. The color of the product LevelOne OAN-4058 is Blanc. This shade gives it a modern and elegant look.
Representation / realization
The product LevelOne OAN-4058 has an increase in the antenna (2.4 GHz) of 5 dBi. This specification enhances the range and quality of the signal for optimal wireless connectivity. The frequency band of the product LevelOne OAN-4058 is 2.4 - 5 GHz. This feature allows for effective communication within the specified frequency range. The network standards of the product LevelOne OAN-4058 are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. These standards ensure optimal compatibility with various equipment and protocols. The maximum gain level of the antenna for the product LevelOne OAN-4058 is 8 dBi. This gain level helps optimize the reception and transmission of signals. The product LevelOne OAN-4058 has an increase in the antenna (5 GHz) of 8 dBi. This specification enhances the range and quality of the signal for an optimal connection experience. The impedance of the product LevelOne OAN-4058 is 50 Ohm. This feature is essential to ensure optimal audio quality. The horizontal radius width (2.4 GHz) of the LevelOne OAN-4058 is 360 °. This specification ensures optimal coverage for your wireless connections. The horizontal radius width (5 GHz) of the product LevelOne OAN-4058 is 360 °. This specification allows for optimizing the range and signal quality in this frequency band. The vertical radius width (5 GHz) of the product LevelOne OAN-4058 is 27.7 °. This specification allows for optimizing coverage and signal performance. The gain of the product LevelOne OAN-4058 is 5 / 8 dBi. This gain helps to improve the signal performance. The vertical radius width (2.4 GHz) of the product LevelOne OAN-4058 is 51.7 °. This specification allows for optimizing the range and signal quality.
Weight and dimensions
The width of the product LevelOne OAN-4058 is 22 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product LevelOne OAN-4058 is 860 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product LevelOne OAN-4058 is 22 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product LevelOne OAN-4058 is 203 mm. This dimension allows for optimal integration into your space.
Packaging contents
The quantity of the product LevelOne OAN-4058 is 1 pièce(s). This specification allows you to know the number of units included in the packaging.
Packaging information
The width of the package of the product LevelOne OAN-4058 is 70 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product LevelOne OAN-4058 is 265 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package LevelOne OAN-4058 is 60 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the LevelOne OAN-4058 package is 192 g. This weight ensures optimal protection during transport and delivery. The packaging type of the product LevelOne OAN-4058 is Blister. This type of packaging ensures optimal protection and facilitates transportation.
Logistics data
The length of the main (external) locker of the product LevelOne OAN-4058 is 560 mm. This specification is essential to ensure optimal storage and efficient use of space. The width of the external main locker of the product LevelOne OAN-4058 is 480 mm. This dimension is essential to ensure optimal storage and efficient use of space. The height of the external main locker of the product LevelOne OAN-4058 is 290 mm. This dimension is essential to ensure optimal storage. The gross weight of the main (external) case of the product LevelOne OAN-4058 is 11000 g. This weight is essential for optimizing logistics and transportation. The volume of the main locker (external) of the product LevelOne OAN-4058 is 50 cm³. This volume allows for optimal use of space for storage and transport. The product LevelOne OAN-4058 contains 50 pièce(s) piece(s). This specification is essential for inventory management and shipping optimization. The country of origin of the product LevelOne OAN-4058 is Taïwan. This detail can influence the perception of quality and authenticity. The Harmonized System code for the product LevelOne OAN-4058 is 85177100. This code allows for the unique identification of goods in international trade.
