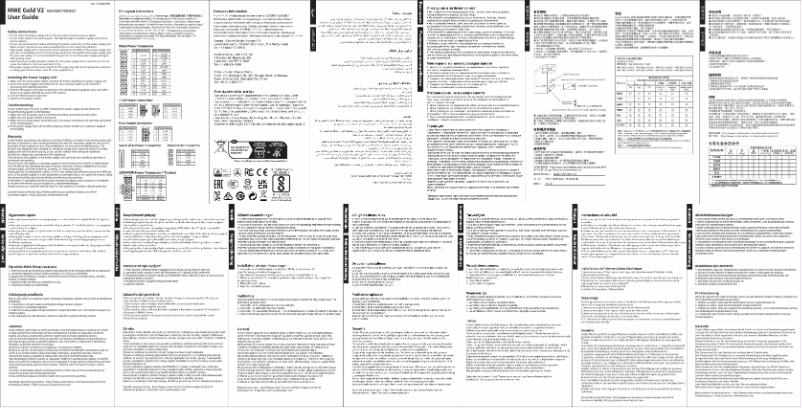

Manuals of product MWE Gold 850 V2
Technical Specifications MWE Gold 850 V2
General Information
-
ModelMWE GOLD 850 V2
-
Brand
-
Category
-
Type
-
SKU1810810
-
MPN1810810
Power
-
Total power850 W
-
AC input voltage90 - 264 V
-
AC input frequency47 - 63 Hz
-
Input current6 - 12 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)100 W
-
Combined power (+12 V)849.6 W
-
Combined power (+5V)100 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)70.8 A
-
Maximum output current (+5V)20 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)3 A
-
Holding time16 ms
-
Effectiveness90 %
-
Electrical protection devicesOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
-
Power Good signal trigger delay100 - 500 ms
Representation / realization
-
Sound level25.9 dB
-
Rolling technologyHDB
-
Mean time between failures100000 h
-
CertificationErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
-
UtilityPC/server
-
Supported motherboard form factorATX
-
80 PLUS Certification80 PLUS Gold
-
Supported motherboard form factorATX
-
Version ATX2.41
Design
-
Product colorBlack
-
Cooling typeActive
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Fan speed0 - 1500 rpm
-
Built-in power buttonYes
Environmental conditions
-
Operating temperature0 - 50 °C
Weight and dimensions
-
Width150 mm
-
Depth160 mm
-
Height86 mm
-
Weight2170 g
Connectivity
-
Motherboard connector24-pin ATX
-
Length of motherboard power cable610 mm
-
Number of SATA power cables12
-
Length of the device's power cable (Molex)500,620,740,860 mm
-
PCI Express power connectors (6 +2 pin)4
-
Length of the device's power cable (Molex)500,620,740,860 mm
-
Electrical connector EPS (4+4 pins)Yes
-
Electrical connector EPS (4+4 pins)Yes
-
PCI Express power connectors (6 +2 pin)4
-
Length of the PCI Express power cable670 mm
-
Wiring typeFully modular
Similar products
More product categories from brand Cooler Master
Other Cooler Master
Audio Cooler Master
More product types from brand Cooler Master
Presentation of product MWE Gold 850 V2 specifications from brand Cooler Master
Generalities
The brand of the product Cooler Master MWE Gold 850 V2 is Cooler Master. This brand is known for its quality and innovation in the field of household appliances. The product model Cooler Master MWE Gold 850 V2 is MWE Gold 850 V2 | MPE-8501-AFAAG-NL. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Cooler Master MWE Gold 850 V2 is 0884102077456, 4719512105146, 4719512106402. This code allows for the unique identification of the product in the distribution system.
Design
The cooling type of the product Cooler Master MWE Gold 850 V2 is active. This system ensures optimal temperature management for improved performance. The number of fans of the product Cooler Master MWE Gold 850 V2 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The color of the product Cooler Master MWE Gold 850 V2 is Noir. This shade gives it a modern and elegant look. The diameter of the Cooler Master MWE Gold 850 V2 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The fan speed of the product Cooler Master MWE Gold 850 V2 is 0 - 1500 tr/min. This feature allows you to adjust the airflow according to your needs. Does the product Cooler Master MWE Gold 850 V2 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Environmental conditions
The operating temperature of the product Cooler Master MWE Gold 850 V2 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The noise level of the product Cooler Master MWE Gold 850 V2 is 25.9 dB. This noise level allows for pleasant use without excessive noise disturbances. The average time between failures of the product Cooler Master MWE Gold 850 V2 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The certification of the product Cooler Master MWE Gold 850 V2 contains ErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI. This certification guarantees compliance with the required safety and performance standards. The product Cooler Master MWE Gold 850 V2 features a HDB bearing technology. This technology ensures optimal performance and increased durability. The usefulness of the product Cooler Master MWE Gold 850 V2 is PC/serveur. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product Cooler Master MWE Gold 850 V2 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The product Cooler Master MWE Gold 850 V2 has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The ATX version of the product Cooler Master MWE Gold 850 V2 is 2.41. This specification ensures optimal compatibility with modern computer components. The motherboard form factor supported by the product Cooler Master MWE Gold 850 V2 is ATX. This form factor ensures optimal compatibility with various components of your system.
Weight and dimensions
The height of the product Cooler Master MWE Gold 850 V2 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Cooler Master MWE Gold 850 V2 is 160 mm. This dimension allows for optimal integration into your space. The width of the product Cooler Master MWE Gold 850 V2 is 150 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Cooler Master MWE Gold 850 V2 is 2170 g. This weight is ideal for ensuring optimal use and easy handling.
Power
The total power of the product Cooler Master MWE Gold 850 V2 is 850 W. This power ensures optimal performance for efficient use. The input current of the product Cooler Master MWE Gold 850 V2 is 6 - 12 A. This input current ensures optimal performance and increased energy efficiency. The AC input frequency of the product Cooler Master MWE Gold 850 V2 is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Cooler Master MWE Gold 850 V2 is 90 - 264 V. This specification ensures optimal compatibility with standard electrical systems. The power factor correction device of the product Cooler Master MWE Gold 850 V2 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The product Cooler Master MWE Gold 850 V2 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE Gold 850 V2 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Cooler Master MWE Gold 850 V2 is 15 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product Cooler Master MWE Gold 850 V2 is 849.6 W. This specification ensures optimal performance for your energy needs. The product Cooler Master MWE Gold 850 V2 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Cooler Master MWE Gold 850 V2 is 20 A. This current ensures optimal performance for your power supply needs. The product Cooler Master MWE Gold 850 V2 has a maximum output current (+12V) of 70.8 A. This specification ensures optimal performance for your power supply needs. The maximum output current (+5Vsb) of the Cooler Master MWE Gold 850 V2 is 3 A. This current ensures a stable and efficient power supply for your devices. The retention time of the product Cooler Master MWE Gold 850 V2 is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The product Cooler Master MWE Gold 850 V2 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Cooler Master MWE Gold 850 V2 is 0.3 A. This specification ensures optimal performance for your energy needs. The effectiveness of the product Cooler Master MWE Gold 850 V2 is 90 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Cooler Master MWE Gold 850 V2 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The trigger delay for the Power Good signal of the product Cooler Master MWE Gold 850 V2 is 100 - 500 ms. This delay is essential to ensure stable and reliable power supply.
Connectivity
The SATA power cable of the product Cooler Master MWE Gold 850 V2 has a length of 500,620,740,860 mm. This specification ensures optimal connectivity for your components. The connector on the motherboard of the product Cooler Master MWE Gold 850 V2 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The length of the motherboard power cable of the product Cooler Master MWE Gold 850 V2 is 610 mm. This specification ensures optimal connectivity for your components. The number of SATA power cables for the product Cooler Master MWE Gold 850 V2 is 12. These cables provide a reliable and efficient connection to power your components. The Molex peripheral connector (4-pin) of the product Cooler Master MWE Gold 850 V2 contains 4. This connector is essential for ensuring a reliable connection between electronic components. The length of the power cable of the device (Molex) of the product Cooler Master MWE Gold 850 V2 is 500,620,740,860 mm. This specification ensures optimal connectivity for your power needs. Does the Cooler Master MWE Gold 850 V2 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The PCI Express power connector (6 +2 pin) of the product Cooler Master MWE Gold 850 V2 contains 4. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the PCI Express power cable of the product Cooler Master MWE Gold 850 V2 is 670 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. Does the Cooler Master MWE Gold 850 V2 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components. The wiring type of the product Cooler Master MWE Gold 850 V2 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection.
